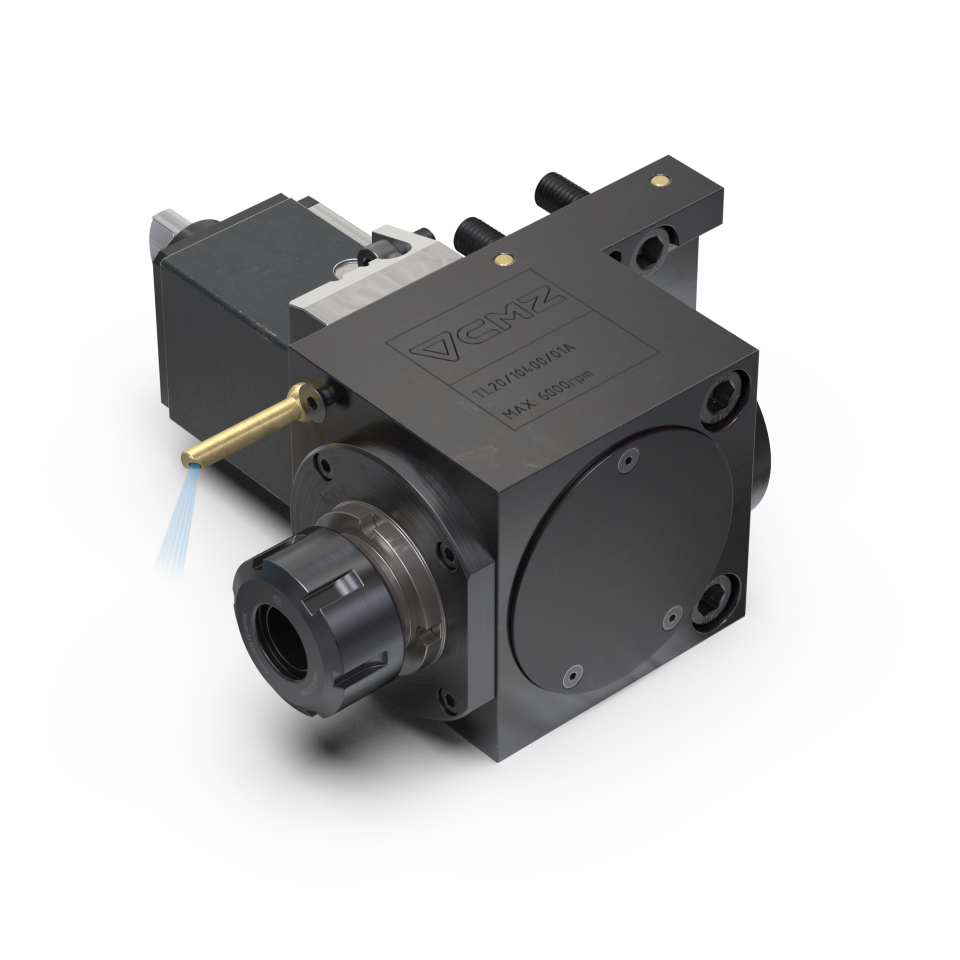

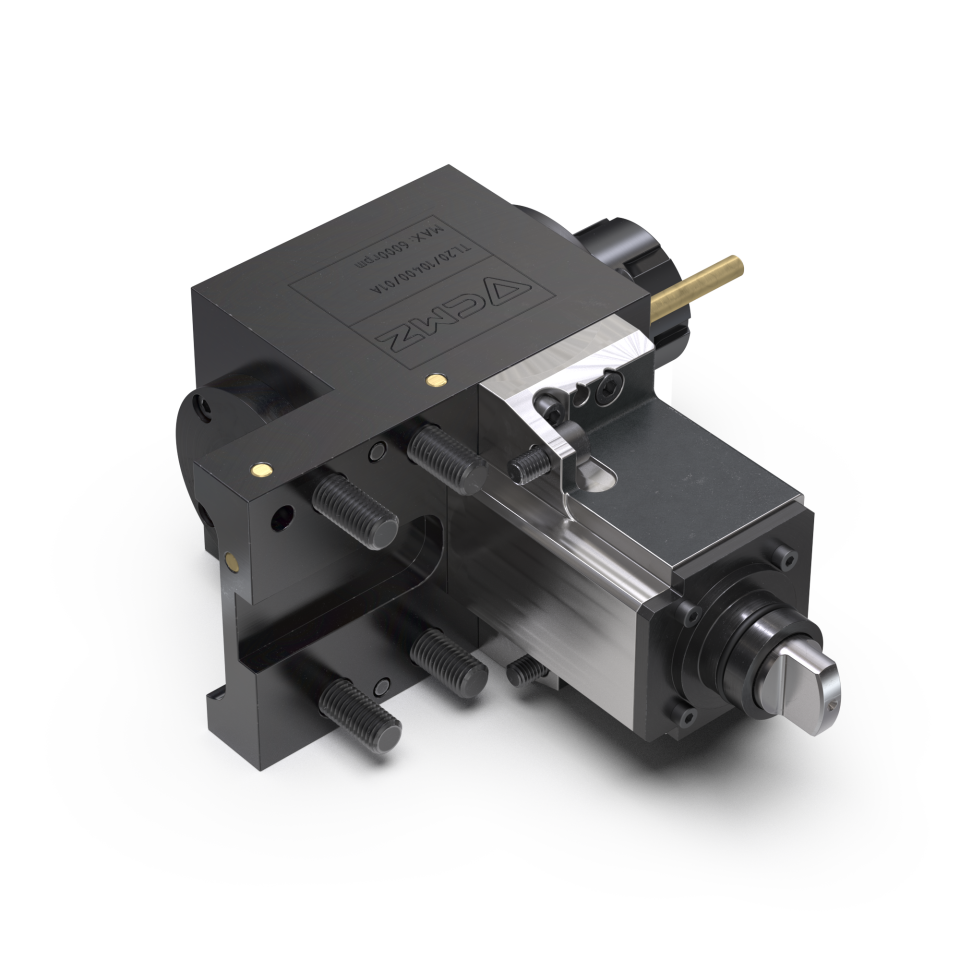

Axial driven tool holder with external cooling (directed towards main spindle). Max. 6.000 rpm.

Axial driven tool holder (directed towards main spindle), with coupling DIN 1809, for collet ESX/ER 32 and external cooling. Max. 6. 000 rpm.

CodeTL20/10400/01B

Valid for machines

Tool holder typeCMZ

Maximum speed 6.000 rpm.
External cooling.
Interior perfectly sealed with PTFE rotating gaskets and a layer of ceramic on the axis in the contact areas. This is of vital importance and the ensurance of a much longer lifetime of the tool holder (it is widely known that the intrusion of coolant through the sealing is in general the principal reason for the deterioration of tool holders)
The rotating axis of the tool holder is tempered and rectified (NOT hard-turned as done by other manufacturers)
Collets type ESX/ER 32 (not included).
Maximum clamping diameter of Ø20 mm.
