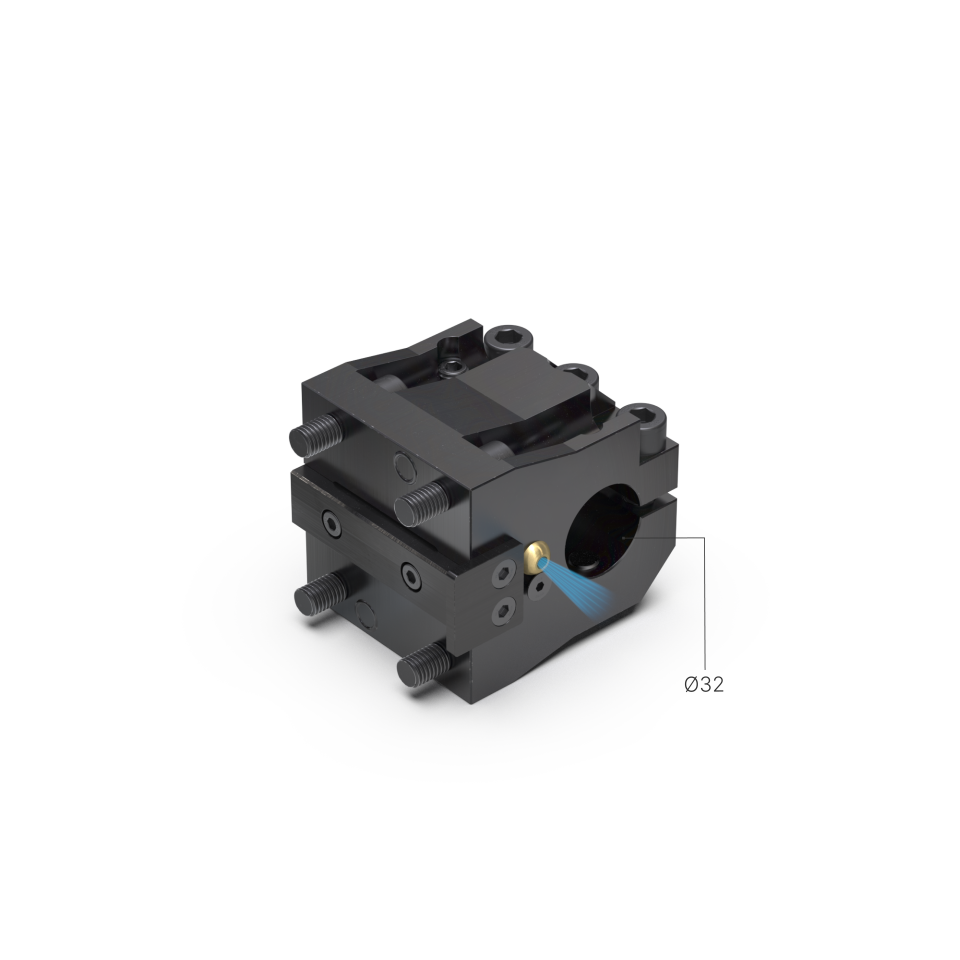

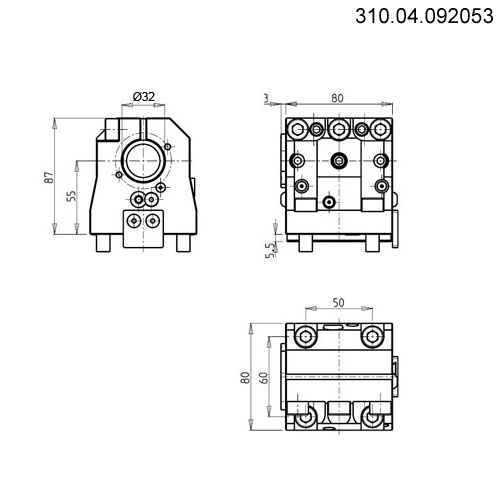

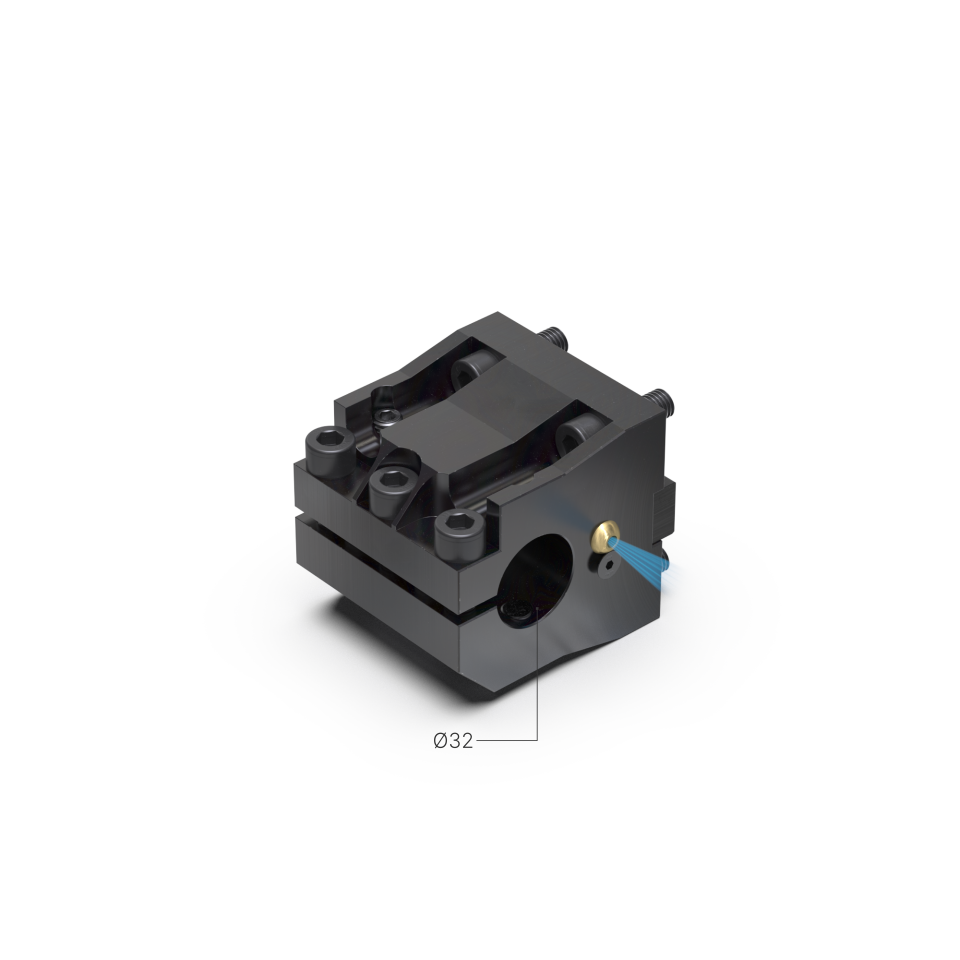

Boring bar holder Ø32 H55 - grooved.
Boring bar holder Ø32 H55 - grooved.
Code310.04.092053
Valid for machines
TATTLTX
Tool holder typeN-55
- The toolholder allows external cooling (via adjustable and pluggable coolant nozzles) and internal cooling.
- In order to use the toolholder with internal cooling, it will be necessary also the part reference 310.04.092035: "Cover for Ø32 grooved boring bar holder with internal cooling."

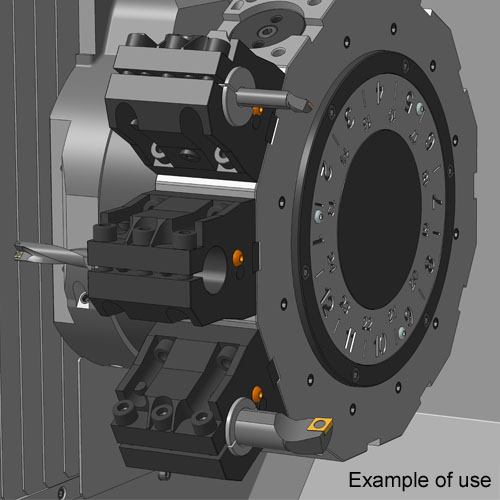

- The toolholder is reversible. This means that the tool can be mounted facing the left spindle or the right spindle.
