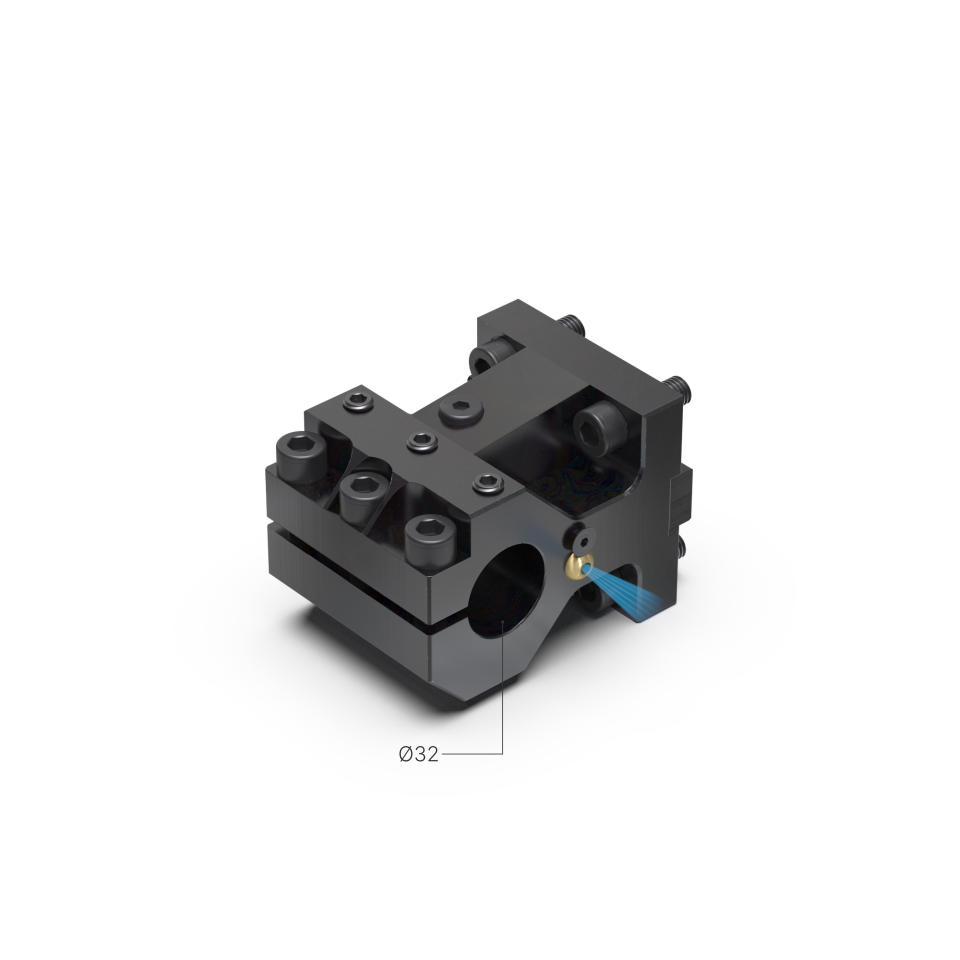

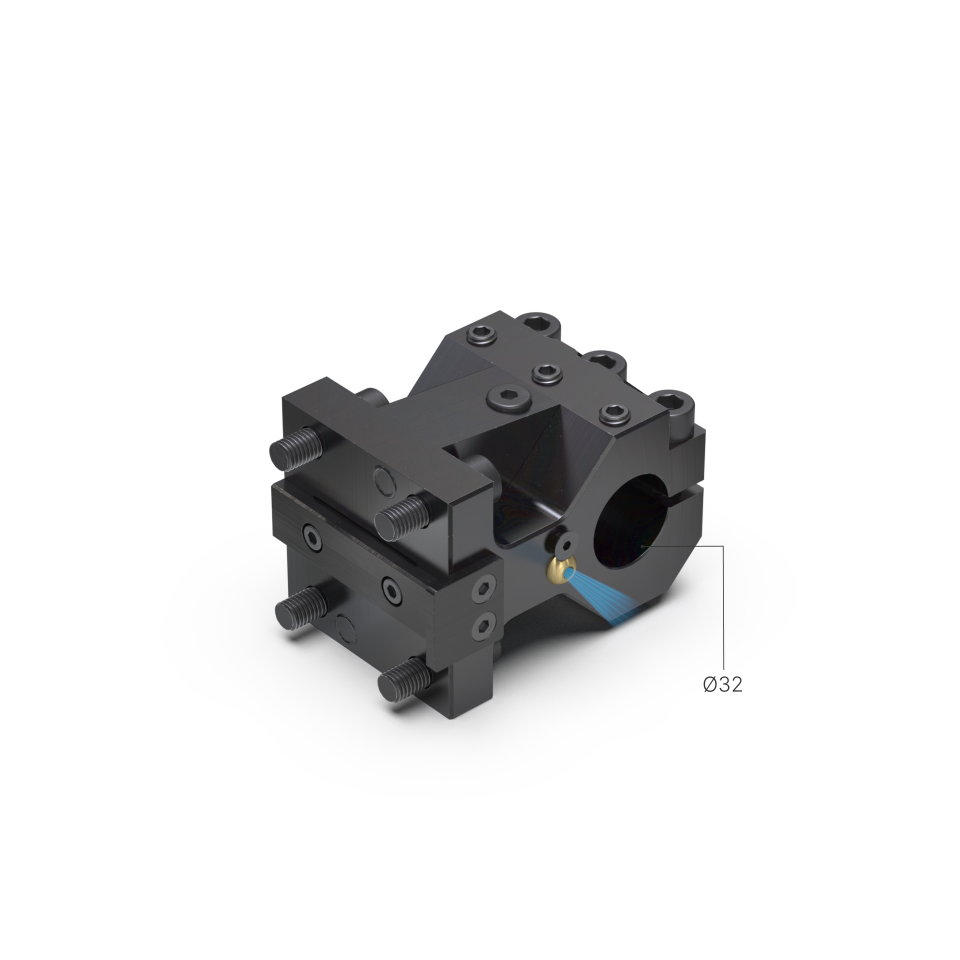

Boring bar holder Ø32 H75 - grooved.
Boring bar holder Ø32 H75 - grooved.
Code310.04.092054
Valid for machines
TATTLTX
Tool holder typeN-55
- ATTENTION: this toolholder exceeds the maximum safe turning diameter of the turret. Its use implies restrictions and interferences which will have to be taken into account in order to prevent collisions.
- The toolholder allows external cooling (via adjustable and pluggable coolant nozzles) and internal cooling.
- In order to use the toolholder with internal cooling, it will be necessary also the part reference 310.04.KIT1004001: "Cover for Ø32 grooved boring bar holder with internal cooling."
- The toolholder is reversible. This means that the tool can be mounted facing the left spindle or the right spindle.
