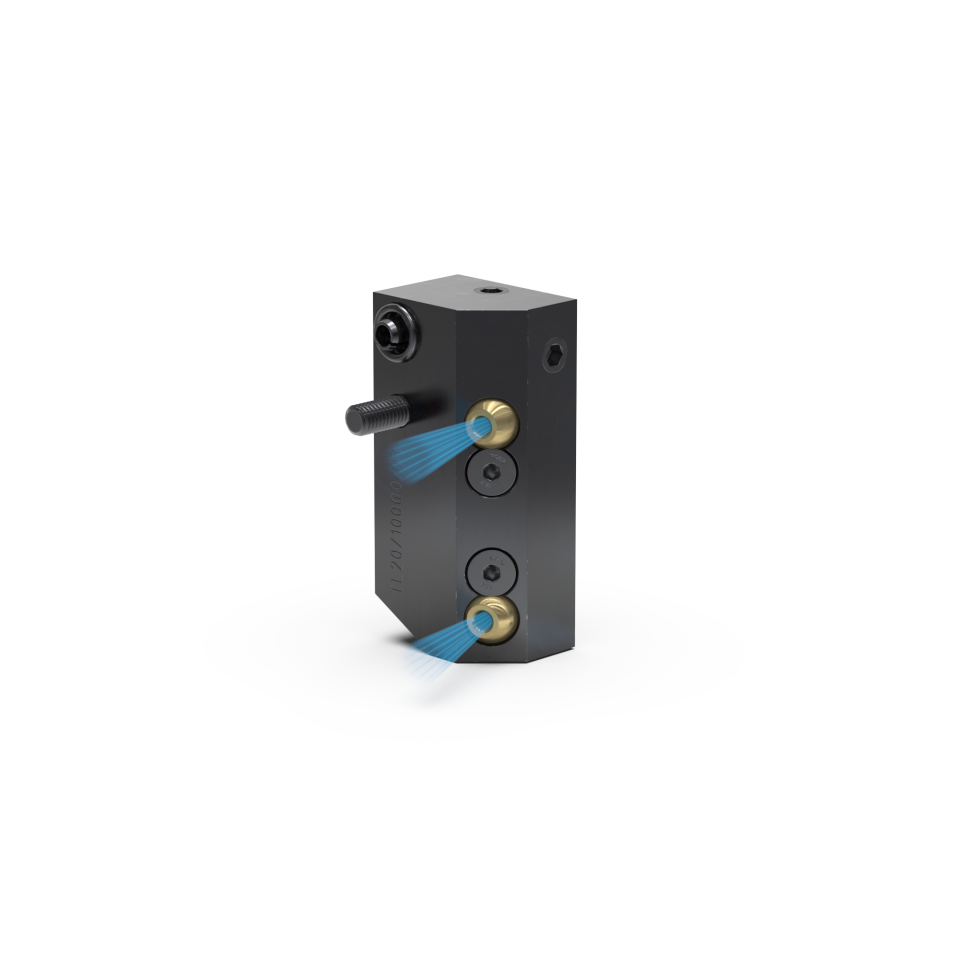

Coolant outlet assembly.

For orienting two coolant outlets towards the tool.

CodeTL20/10000/03

Valid for machines

Tool holder typeCMZ

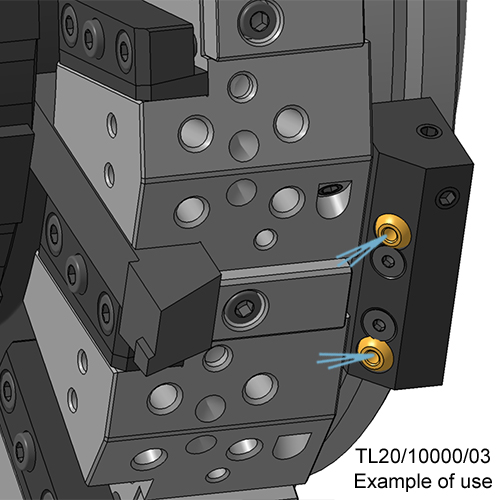

The coolant outlet assembly is mounted on the lateral backwards part of the turret disc. This way the coolant is caught from the turret outlet and directed to the tool.
It is used to supply the external tools with coolant which are mounted directly on the turret disc.
It is equipped with two coolant outlets that can be oriented and plugged - one for the right side tool and the other one for the left side tool.
